How to Draw an Ellipse

Bob Miller argues that with a few unproblematic formulas and a clever jig, information technology becomes possible to draw and cut ellipses of whatever size and add this stately and pleasing shape to your piece of work.

An ellipse is a special kind of oval, in fact it's the most stately and refined of the ovals. What sets the ellipse apart from other ovals is that it can be mathematically divers and mechanically fatigued. Most people will await at an ellipse and only phone call information technology an oval, but there is more than to it than that. With a few unproblematic formulas and a clever jig, yous tin draw and cut ellipses of whatsoever size and add together this stately and pleasing shape to your work.

What makes an ellipse special is ii points inside the shape called the "foci" (plural of "focus"). What makes them important is that the distance betwixt the focus, the border, and the other focus is abiding for any point on the perimeter of the ellipse. Not only does this event in an elegant and pleasing shape, just it also allows the ellipse to exist drawn precisely and easily.

Since it is possible to define an ellipse mathematically, this is where some math comes in. Just don't worry; y'all tin can do it. All you need to know is the overall size of the ellipse, divers by its length and width at its maximum points. These two dimensions are called the major axis and the minor axis. From there it is possible find the location of the foci, using this formula:

C=√(A²-Bⁱⁱ)

where C equals the distance between the eye and each of the foci and A equals the radius of the major axis and B equals the radius of the minor axis. Run into the diagram beneath to see what goes where.

Once you know where the foci are located relative to the center of the ellipse, cartoon the ellipse becomes a d0ddle.

Simply bulldoze two nails into the design at the foci, and necktie a loop of non-elastic string that hooks on both foci and when pulled taut reaches to any indicate on the ellipse. Then just keeping the loop of string taut, motility the pencil around the foci, letting the string guide your path. Because the string is a fixed length, it will proceed the pencil equidistant from both foci and will neatly and cleanly define an ellipse. See the following diagram and video for how this works.

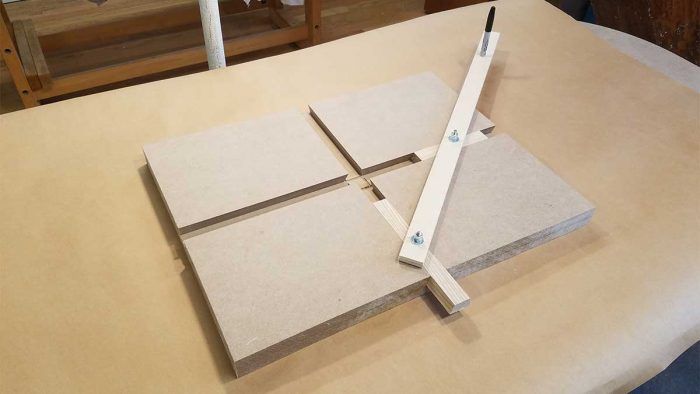

While the cord method is swell for drawings and layout, to really cutting a precise ellipse you will need an ellipsograph, a clever jig that tin move in an elliptical shape and carry anything from a pencil to a router. The ellipsograph is quite simple; all is required is two dovetailed tracks in MDF that are perpendicular to each other. Two pieces of hardwood are then milled to a sliding fit in the tracks and a bolt added at their centers.

Adhere a rigid plywood arm to both bolts. To command the size of the ellipse, you demand to know the major and minor radius of the ellipse (A & B from the formula above). Adhere a router to the plywood arm and so attach it to the two sliding blocks. Attach one block the small-scale distance from the router and the other the major distance from the router. Every bit yous maneuver the arm around the ellipse, the two sliders will bypass each other in the jig and move the stop of the arm in a perfect ellipse!

Don't fright the ellipse, and don't fearfulness the doing the math to make it happen.
